Air control unit

Perfect air quality with low energy costs. With the ACV it is possible to control air quantities very precisely. This means that you always have perfect air quality with low energy consumption.
In the development of the propeller, emphasis has been given to aerodynamics and bearings.
The propeller runs at minimum air flow and the bearings are standard in stainless steel.

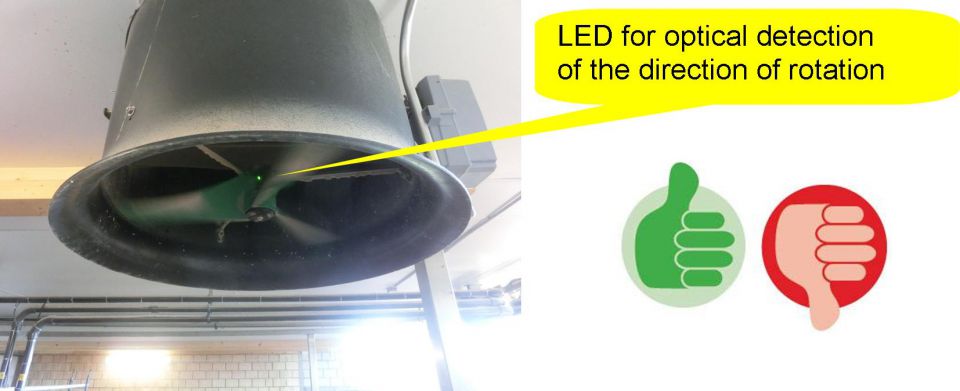

The aerodynamic shape of the propeller also ensures that as little resistance as possible is created. The measuring fan is direction-sensitive and by means of LED indication is visible if it goes right or wrong.

Specifications:

measuring fan:

• measure exactly from 0,3 m/s
• 3-wire connection (+ 12V / earth / pulse signal)
• stainless steel bearings
• integrated LED

Servomotor:

• operating voltage 24V
• control voltage 0 ... 10 V / 10 ... 0 V
• force: 10 Nm
• ip 66/67
